Gallium
Arsenide (GaAs)
|
Gallium
Arsenide used for lenses and beam splitters provides an alternative
to ZnSe in medium and high power CW CO2 laser systems.
It is most useful in applications where toughness and durability
are important. Its hardness and strength make it a good choice
where dust or abrasive particles tend to build up on or bombard
the optical surfaces. When frequent cleaning by wiping is
required, GaAs is excellent. The material is nonhygroscopic,
safe to use in laboratory and field conditions and is chemically
stable except when in contact with strong acids.
|
Specifications
of GaAs |

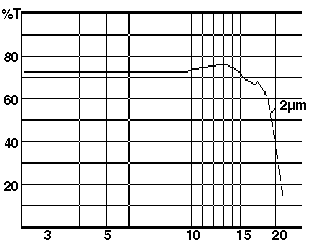

Transmission
Range |
0.6 to 21.0¦Ìm |
Refractive
Index |
2.4028
at 10¦Ìm |
Reflection
Loss |
29.1% at 10.6¦Ìm (2 surfaces) |
Absorption
Coefficient |
0.0005cm-1
at 10.6¦Ìm |
Restrahlen
Peak |
45.7microns |
dn/dT |
+61 x 10-6/¡ãC at 10.6¦Ìm at 298K |
dn/d¦Ì = 0 |
5.5¦Ìm |
Density
|
5.27g/cm3 |
Melting
Point |
1525¡ãC (dissociates about 700¡ãC) |
Thermal
Conductivity |
18 W/(m K) at 298K |
Thermal Expansion |
7.1 x 10-6/ ¡ãC at 273K |
Hardness |
Knoop 120 with 50g indenter |
Specific Heat Capacity |
339
J ¡¤ kg-1 ¡¤ K-1 |
Bulk Modulus (K) |
40 GPa |
Young's
Modulus (E) |
67.2 GPa |
Apparent
Elastic Limit |
55.1 MPa (8,000psi) |
Poisson
Ratio |
0.28 |
|
|
|
|
