Often referred to as long wave pass (LWP) and
short wave pass (SWP) filters, these sharp-cut
edge filters are distinguished by their high rate
of transition between their region of reflection
and transmission. This high rate of transition
makes them an excellent choice as emission filters
in fluorescence applications, and as order sorting
filters in photometry. They are also very useful
as stray light or trim filters, to eliminate any
unwanted near band radiation. All LWP/SWP filters
are constructed of hard, durable first-surface
dielectric coatings, and will withstand the normal
cleaning and handling associated with any high-quality
optical component. Their film construction is
essentially a modified quarter-wave stack, using
interference effects rather than absorption to
isolate their spectral bands. Unlike filter glass,
which is not sensitive to wavelength shift with
angle, these filters will shift shorter in wavelength
with an increase in their angle of incidence.
This feature can be useful in applications where
it may be desirable to fine tune the 50% cut-on,
or cut-off wavelength.
|
|
General
Specifications
|
Size
Tolerance: |
+0.0,
- 0.2mm |
|
Thickness: |
2.0mm to 8.0mm |
Minimum
Clear Aperture: |
90% of O.D. |
Substrate
Material: |
Glass |
Flatness: |
2¦Ë per 25mm |
Parallelism: |
3
arc minutes |
Surface
Quality: |
80/50 |
Cut-on
and cut-off slopes: |
6% |
Cut-on
and cut-off tolerance: |
¡À10nm |
Cut
on , Cut off : |
Wavelength
of 50% Peak transmission |
Blocking
: |
Short
wave pass : |
1.2¦Ë
c to 1200nm |
Block
Optical Density : |
Typically
0.1% , O.D 3 |
|
|

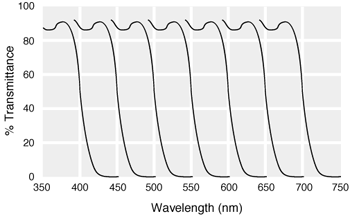

VISIBLE
AND NEAR INFRARED SHORT WAVE PASS FILTERS |
Cut-on
(¦Ëc) (nm)
|
T
range (nm)
|
Tave%
|
¦µ2.5mm
|
¦µ?5.4mm
|
¦µ50.0mm
|
Part
No.
|
Part
No.
|
Part
No.
|
450
|
415-440
|
80%
|
SF1045
|
SF2045
|
SF3045
|
500
|
415-490
|
80%
|
SF1050
|
SF2050
|
SF3050
|
550
|
415-540
|
80%
|
SF1055
|
SF2055
|
SF3055
|
600
|
415-590
|
80%
|
SF1060
|
SF2060
|
SF3060
|
650
|
415-640
|
80%
|
SF1065
|
SF2065
|
SF3065
|
700
|
440-685
|
80%
|
SF1070
|
SF2070
|
SF3070
|
750
|
475-735
|
80%
|
SF1075
|
SF2075
|
SF3075
|
800
|
475-785
|
80%
|
SF1080
|
SF2080
|
SF3080
|
850
|
475-835
|
80%
|
SF1085
|
SF2085
|
SF3085
|
900
|
475-880
|
80%
|
SF1090
|
SF2090
|
SF3090
|
950
|
475-930
|
80%
|
SF1095
|
SF2095
|
SF3095
|
1000
|
475-980
|
80%
|
SF1100
|
SF2100
|
SF3100
|
|
|
Please
refer to
the Glossary
and Technology
for more information about waveplates. |
|
Other
sizes and coatings are available upon request. |
|
|
